Adjustable Speed Wire Drawing Equipment Capacity 180m/Min Outlet Wire Diameter 2.8mm
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-LSJ-5 |
| Minimum Order Quantity | One set |
| Packaging Details | 1.main machine and accessory equipment will be packed with sketch film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not |
| Delivery Time | 25 working days |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Drawing Machine | Inlet Wire Diameter | 6.5mm |
|---|---|---|---|
| Outlet Wire Diameter | 2.8mm | Number Of Drum | 5 Pcs |
| Motor | 15kw*5pcs | Speed | 160m / Min |
| Control System | By PLC | Production Speed | Adjustable |
| Size Of Drum | 550mm | Machine Weight | 4500kg |
| Machine Dimension | 6500*1200*1800mm | Coil Wire Loading | 300kg |
| Highlight | Adjustable Speed Wire Drawing Equipment,Wire Drawing Equipment 180m/Min,Wire Drawing machine 180m/Min |
||
Product Description
Capacity 180m / Min Outlet Wire Diameter 2.8mm Wire Drawing Machine
Introduction of Wire Drawing Machine:
Pulley type wire drawing machine are suitable for low carbon steel wire, PLC control and inverter control system to assure high speed & stable operation. Low Carbon steel wire main used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc.
1. Easy in installation and operate.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization ,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5. Good cooling system, final wire quality is very good.
Main Features of Wire Drawing Machine:
1. Easy in installation and operate.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization ,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5. Good cooling system, final wire quality is very good.
Technical Parameters of Wire Drawing Machine:
| Inlet wire diameter | 6.5mm |
| Outlet wire diameter | 2.8mm |
| Production speed | 180m / min |
| Numer of drum | 5 drums |
| Production capacity | 900-1000kg per hour |
| Machine weight | 4500kg |
| Machine dimension | 6500*1200*1800mm |
| Motor | 15kw*5pcs |
| Voltage | 220V 380V 415V 440V |
| raw material | Low carbon steel wire,high carbon steel wire |
| Floor space | 15*3m |
Applications of Wire Drawing Machine:
Low Carbon steel wire main used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc.

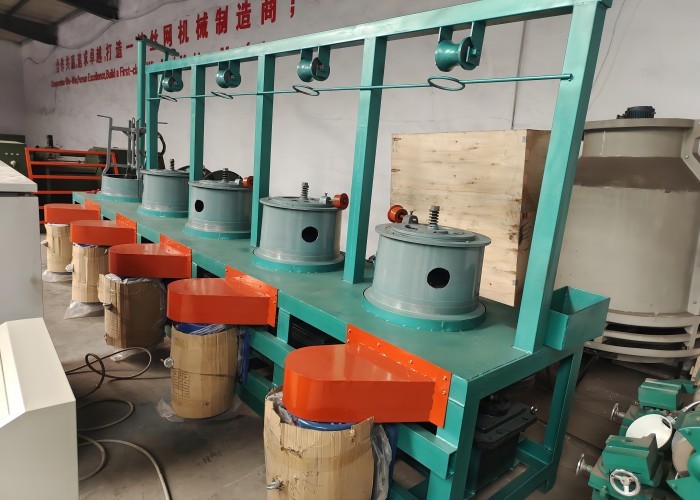

Photos of Wire Drawing Machine:
