Pneumatic Hook Pull Mesh Poultry Width 1.2m Wire Mesh Welder

  • Pneumatic Hook Pull Mesh Poultry Width 1.2m Wire Mesh Welder
  • Pneumatic Hook Pull Mesh Poultry Width 1.2m Wire Mesh Welder
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-1200
Minimum Order Quantity One set
Packaging Details 1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box. 2. The main machine will be fixed in the container by steel wire rope to make it stable. 3. It needs one 20"GP or 40GP for shipment.
Delivery Time 30-35 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wire Mesh Welding Machine After-sales Service Provided Engineers Available To Service Machinery Overseas
Wire Diameter 2.5mm-4mm Certification CE
Weight 3300kg Warranty 2 Years
Voltage 220V/380V/415V/440V Welding Speed 40-120 Times/min
Type Fully Automatic Mesh Width 1200-1500mm
Cross Wire Space Adjustable Stepless 25-600 Mm Longitudinal Wire Type Coil Wire
Cross Wire Type Pre-straighten And Pre-cut Power Consumption 6KW Per Hour
Highlight

width 1.2m wire mesh welder

,

width 1.2m wire mesh welding machine

,

pneumatic hook pull wire mesh welder
Leave a Message
Product Description

Width 1.2m Pneumatic Hook Pull Mesh Poultry Wire Mesh Welding Machine





Wire Mesh Welding Machine Features:



Poultry cage wire mesh welding machine,also called breed aquatics welding machine,chicken cage mesh welding machine,is used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh and so on.It also can be used to make flat panel mesh like shopping basket,supermarket shelf,etc.



Wire mesh welding machine (Automatic Welding Panel Machine), is the mechanical integration of the most advanced electronic and computer wire mesh welding machine, the machine of the biggest advantages is the wire diameter adjustable weft distance into the computer will be able to achieve what you get the hole size, mesh random variable. The mesh welding machine flat, diagonal error is very small, the welding mesh expert assessment is the most advanced welding machine.



Wire Mesh Welding Machine Features:



1.The longitudinal wire is from coil wire feeding automatically. The cross wire is pre-straighten and pre-cut. manual to put cross wire to hopper. feeding automatically.

2. The wire mesh welding machine is equipped with automatic mesh cutting machine. The cut mesh length can be adjustable.

3. Wire mesh welding machine mesh a maximum width of 3.0 meters.
4. Welding diameter 2.5mm-4mm
5. The machine mesh Maximum length: 6m
6. The maximum number of welds: 80 times / min
7. Welded longitudinal wire spacing: 25-300 mm
8. Welding cross wire spacing: 25-300 mm
9. Welding Material requirements: Q195F such as carbon content lower than the phase wires on the standard annealing
10. The number of solder joints: 12(first choice according to need autonomy)
11. Rated Power: 125kva × 3
12. Welding transformer since the cold air
13. Form a compact welding, by several times
14. Adjustable welding pressure: change the spring compression of the rod length and quantity
15. The pitch of weft yarn of the pitch into a computer automatically change



Wire Mesh Welding Machine Technical Parameters:



Model DX-GWC-1200 DX-GWC-1600
Wire diameter 2.5-4.0mm 2.5-4.0mm
Cross wire space Min 25mm Min 25mm
Longitudinal wire space 50-200mm 50-200mm
Welding mesh width 1200mm 1600mm
Number of welding electrode 25pcs 32pcs
Welding speed 80 times per min 80 times per min
Welding transformer  125kva*3pcs 125kva*4pcs
Longitudinal wire type From coil wire From coil wire
Cross wire type Pre-straighten and pre-cut Pre-straighten and pre-cut
Factory power supply 100kva 100kva
Weight 3300kg 3500kg
Machine dimension 6500*1900*1600mm 6500*2200*1600mm
Labor cost 1 worker 1 worker
Power consumption 6kw per hour 6kw per hour



Wire Mesh Welding Machine Applications:



It is main used for breeding mesh and construction mesh.



Wire Mesh Welding Machine Photos:

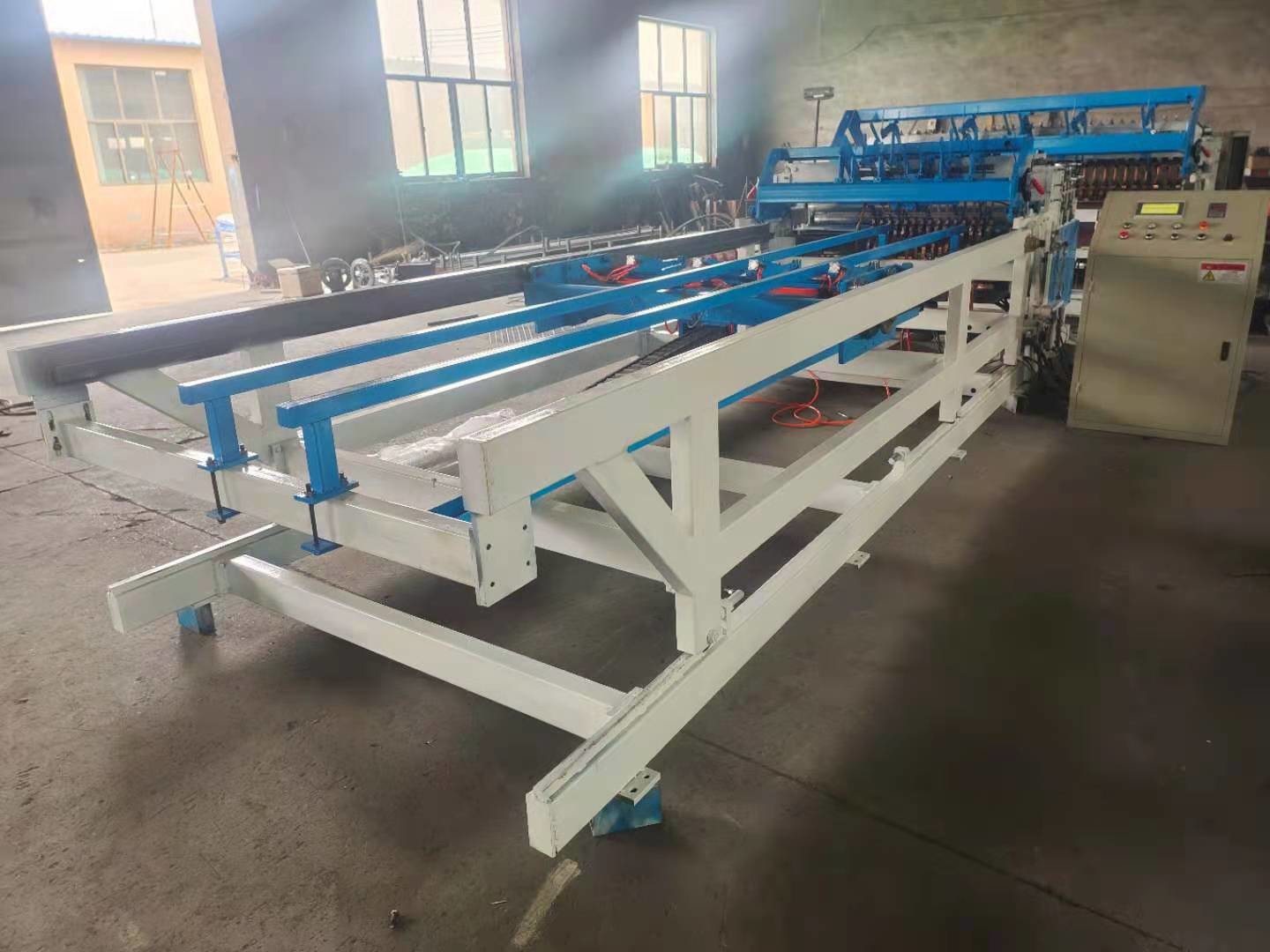

Pneumatic Hook Pull Mesh Poultry Width 1.2m Wire Mesh Welder 0

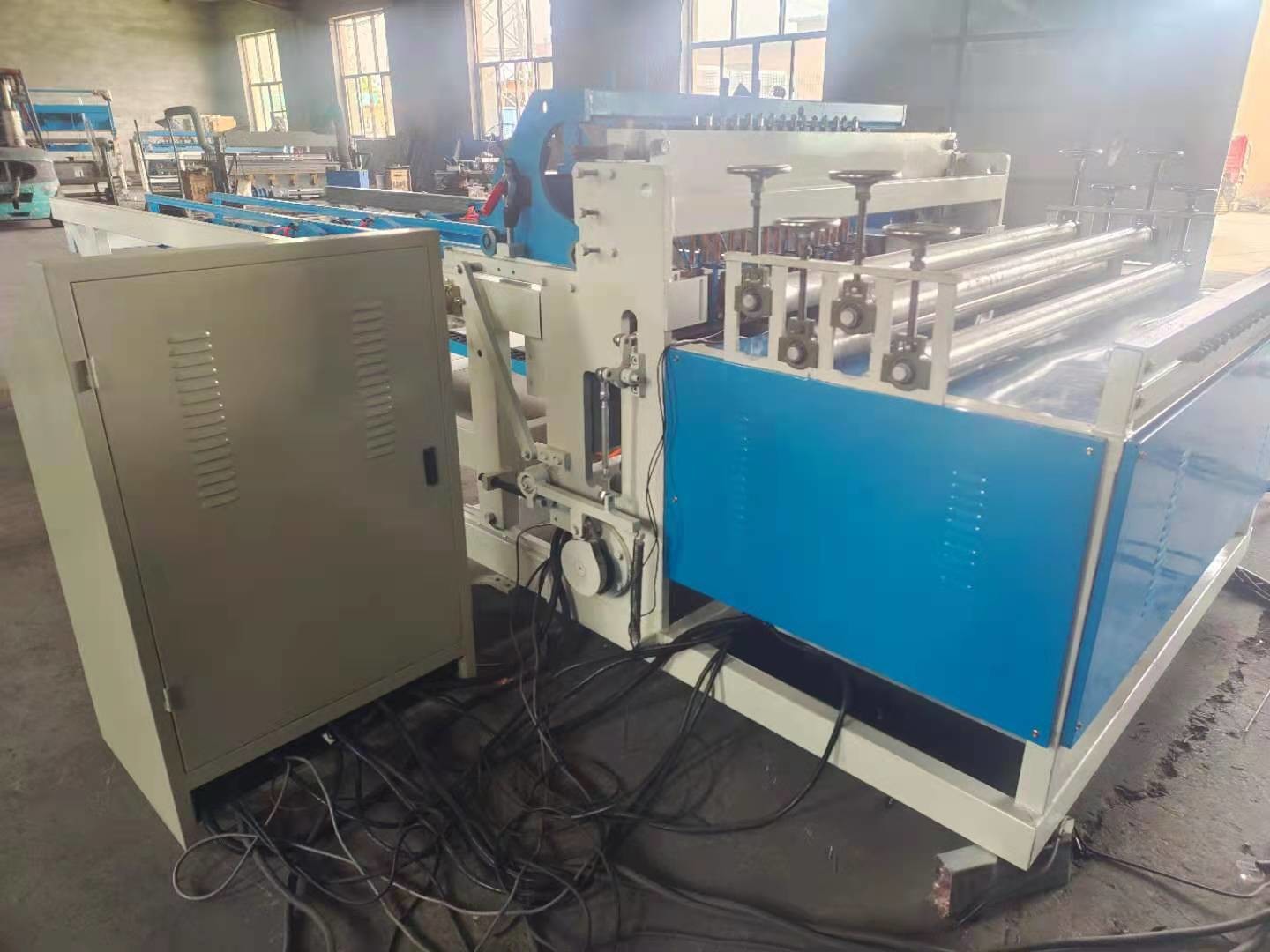

Pneumatic Hook Pull Mesh Poultry Width 1.2m Wire Mesh Welder 1

Pneumatic Hook Pull Mesh Poultry Width 1.2m Wire Mesh Welder 2
