2500D 5mm 65 Times Construction Mesh Welding Machine

  • 2500D 5mm 65 Times Construction Mesh Welding Machine
  • 2500D 5mm 65 Times Construction Mesh Welding Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The Reinforcing Mesh Panel Welding Equipment is nude packing. Need one 40 feet container load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mesh Panel Welding Machine Wire Diameter 5.0-9.0mm
Welding Mesh Width 2500mm Line Wire Space 50-300mm
Cross Wire Space 50-300mm Mesh Length 6m
Welding Electrode 48PCS Welding Speed 65 Times Per Min
Welding Transformer 160KVA*8PCS With Water Cooling System Upper Copper Electrode Size 20*120mm
Down Copper Electrode 20*20*20mm Condition New
Highlight

65 Times Construction Mesh Welding Machine

,

5mm Construction Mesh Welding Machine

,

button weld mesh making machine
Leave a Message
Product Description

Wire Diameter 5-9mm Construction Mesh Reinforcing Mesh Panel Welding Equipment





Reinforcing Mesh Panel Welding Equipment Introduction:



Reinforcing mesh panel welding equipment, also called BRC mesh welding machine, Construction mesh welding machine.

The reinforcement mesh panel welding equipment is used to make steel rebar mesh, road mesh, building construction mesh. The reinforcing mesh panel welding equipment is featured by high capacity, easy operation, and precise control. The reinforcing mesh panel welding equipment can weld wire diameter 5-9mm. The minmium mesh hole size 50*50mm. Maximum up to 300*300mm. Mesh width max 2500mm. This is a midium-sized machine to make steel rebar mesh. Have big market in different countries. Save cost for clients.



Reinforcing Mesh Panel Welding Equipment Features:



1. Welding pressure is provided by spring pressure system, uniform pressure and stable performance; and the water-cooling transformer and water-cooling welding electrodes to make sure the welding firm during a long working time, and prolong the service life.

2. Cross wire feeding method: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become cross wire. Then worker put the cross wires into wire hopper. The cross wire hopper can load max 1500 tons rebar. Wire hopper under the control of air pump, the cross wires falling automatically one by one.

3. Line wire feeding method: Line wires are the same to cross wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then workers put the line wire into the under electrodes. the welding began welding.

4. Control cabinet adopts PLC control system though touch screen operate system, you can change welding time, or welding current time. mesh opening size through touch screen.



Reinforcing Mesh Panel Welding Equipment Technical Parameters:



Model DX-GWC-2000D DX-GWC-2500D
Wire diameter 5.0-9.0mm 5.0-9.0mm
Welding aperture 50-300mm 50-300mm
Width of mesh 2000mm 2500mm
Number of electrodes 40PCS 48PCS
Welding speed 45-65 times per min 45-65 times per min
Rated voltage 220V 380V 415V 440V 220V 380V 415V 440V
Rated capacity 160KVA*7PCS 160KVA*8PCS
Overall dimension 7500*2700*1900mm 7500*3200*1900mm
Total weight 5.8T 6.8T
Line wire form Pre-straighten and pre-cut Pre-straighten and pre-cut
Cross wire form Pre-straighten and pre-cut Pre-straighten and pre-cut
Operation system By touch screen and button By touch screen and button
Welding pressure By spring  By spring
Cross wrie feeding system By stepping motor controlled By stepping motor controlled
Mesh pulling system By servo motor to pull mesh By servo motor to pull mesh
Water Cooling system welding electrode cooling transformer Welding electrode cooling transformer
Control system By PLC  By PLC
Power transformer 200KVA  200KVA



Reinforcing Mesh Panel Welding Equipment Applications:



Welded mesh panel widely used as reinforce mesh panel for building, construction; railway wire mesh fence, security fence and others.



Reinforcing Mesh Panel Welding Equipment Packing:



2500D 5mm 65 Times Construction Mesh Welding Machine 0

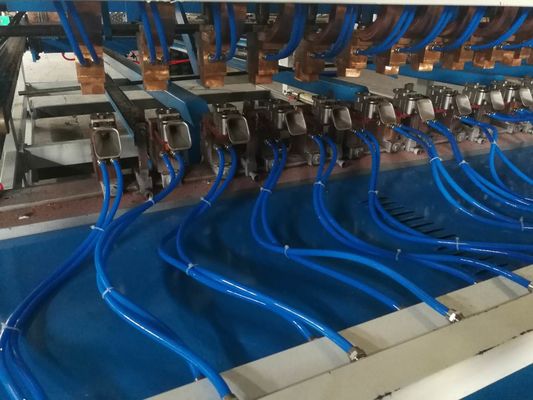

Reinforcing Mesh Panel Welding Equipment Photos:



2500D 5mm 65 Times Construction Mesh Welding Machine 1

2500D 5mm 65 Times Construction Mesh Welding Machine 2

2500D 5mm 65 Times Construction Mesh Welding Machine 3

2500D 5mm 65 Times Construction Mesh Welding Machine 4
