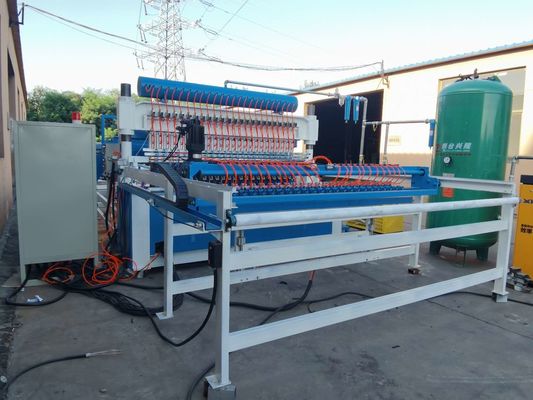

Thyristor Synchronous Construction Mesh Welding Machine

  • Thyristor Synchronous Construction Mesh Welding Machine
  • Thyristor Synchronous Construction Mesh Welding Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500A
Minimum Order Quantity One set
Packaging Details The reinforced steel bar mesh welding equipment is nude packing. Put into 40 feet container.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 12 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 5-12mm
Voltage According To Clients' Voltage Warranty 2 Years
Usage Welding Steel Mesh Welding Speed 40--65 Times Per Min
Rated Capacity 150kva*12pcs Mesh Width Max. 3m
Mesh Length Max. 12m Control System Panasonic PLC
Highlight

5mm Construction Mesh Welding Machine

,

Thyristor synchronous Construction Mesh Welding Machine

,

5mm mesh making machine
Leave a Message
Product Description

CNC Bridge Construction Mesh Reinforced Steel Bar Mesh Welding Production Line





Reinforced Steel Bar Mesh Welding Production Line Introduction:



The Reinforced Steel Bar Mesh Welding Production Line is our latest develop automatic mesh welding production line.



The Reinforced Steel Bar Mesh Welding Production Line adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer. The welding press from air cylinder.



Reinforced Steel Bar Mesh Welding Production Line Features:



1. The reinforced steel bar mesh welding Production Line is controlled by computer and PLC programmable controller, with high degree of automation. Imported automatic digital servo motor system ensures accurate grid size. Weldable cold-rolled ribbed steel bar, hot-rolled ribbed steel bar, hot-rolled disc steel bar, cold-rolled round steel bar and other materials with wide adaptability.



2. Water-cooled welding electrodes and a new type of special transformer for water-cooled welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.



3. The reinforced steel bar mesh welding production line will stop working automatically if there is no cross wires in the hopper device.



4. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the production line.



5. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.



Reinforced Steel Bar Mesh Welding Production Line Technical Parameters:



Model DX-GWC-2500A DX-GWC-3000A DX-GWC-3300A
Width of mesh 2500mm 3000mm 3300mm
Line wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Cross wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Wire diameter 5-12mm 5-12mm 5-12mm
Welding electrodes 26PCS 30PCS 32PCS
Welding transformer 125KVA*13PCS 125KVA*15PCS 125KVA*16PCS
Welding press type Mechanical Mechanical Mechanical
Industrial voltage 220V/380V/415V/440V 220V/380V/415V/440V 220V/380V/415V/440V
Welding way Thyristor synchronous control Thyristor synchronous control Thyristor synchtonous control
Line wire type Pre-cut Pre-cut Pre-cut
Cross wire type pre-cut Pre-cut Pre-cut
Welding speed 40-65 times per min 40-65 times per min 40-65 times per min
Overall dimension 40m*4.2m*2.3m 40m*4.7m*2.3m 40m*5.2m*2.3m
Total weight 11T 13T 15T
Labor required 2 workers 2 workers 2 workers
Falling mesh way Automatic Automatic Automatic





Reinforced Steel Bar Mesh Welding Production Line Applications:



Reinforced steel bar mesh is mainly used in municipal bridge, highway bridge deck pavement, old bridge deck reconstruction, bridge pier crack prevention, etc



Reinforced Steel Bar Mesh Welding Production Line packing:



Thyristor Synchronous Construction Mesh Welding Machine 0



Reinforced Steel Bar Mesh Welding Production Line Photos:



Thyristor Synchronous Construction Mesh Welding Machine 1

Thyristor Synchronous Construction Mesh Welding Machine 2

Thyristor Synchronous Construction Mesh Welding Machine 3
